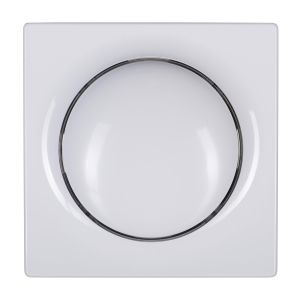

Fibaro Walli Roller Shutter

The FIBARO intelligent wall switch is an intelligent wall switch designed to control the motors of roller shutters, awnings, shutters and other single-phase devices powered by alternating current via the Z-Wave network. The switch is equipped with a luminous LED ring, which informs about the operating status of the controller.

Features:

Supply voltage: 110-230V ~ 50/60 Hz

Rated load current: 4A for motors with compensated power factor (inductive loads) / 13A for resistive loads

Compatible loads: single-phase AC motors / resistive loads

Limit switches required: electronic or mechanical

Recommended external surge protection: 10A circuit breaker type B (EU) / 13A circuit breaker type B (Sweden)

For mounting in boxes: Ø = 60mm, depth ≥ 40mm

Recommended cables: 1.5-4.0mm2 cross-sectional area, 11.5-13mm insulated

Working temperature: 0–35 ° C

Ambient humidity: 10-95% RH non-condensing

Radio protocol: Z-Wave (500 series chip)

Radio frequency: 868.0–868.6MHz; 869.7–870.0MHz

EIRP power: + 6dBm

Range: up to 50m outdoors / up to 40m indoors (depending on terrain and building materials)

Dimensions (Height x Width x Depth): 86 x 86 x 51 mm

Compliance with EU directives: RoHS 2011/65 / EU, RED 2014/53 / EU
