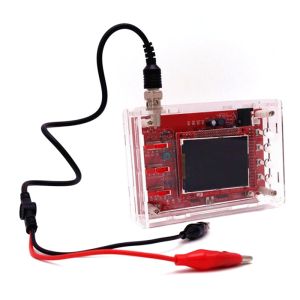

DSO138 LCD 2.4 "TFT digital oscilloscope

 The device is assembled and ready to use.

It is an easy and reliable oscilloscope circuit to operate. Can display frequency, period, pulse width, duty cycle, MAX./MIN./AVG./Peak-Peak/virtual values. The device is assembled and ready for operation.

Specification:

High quality, small size, easy to use, handy

Real-time sampling: 1Msps

· 12 bit converter

· Length of the data buffer 1024 bits

0-200kHz analog band

· Vertical sensitivity up to 10 mV up to 5V - progressive 1-2-5 selection

1MΩ input impedance

Maximum input voltage: 50Vpp for 1: 1 probe

Maximum input voltage: 400Vpp for 10: 1 probe

Trigger modes: DC / AC / GND

Time base ranges: 10μs to 50s, progressive 1-2-5 selection

9V power supply (power adapter included)

Dimensions: 52x40 mm

Weight 120g

Product features:

2.4 inch TFT color display

Waveform storage function, even in the event of a power failure

· Trigger for a falling or rising edge

ARM Cortex-M3 processor (STM32F103C8)

· Possibility to freeze curves

· Short circuit and open circuit detection

Set contains:

1. DSO138 oscilloscope

2: 1: 1 measuring probe

3.4x plastic feet

4.Operation manual
