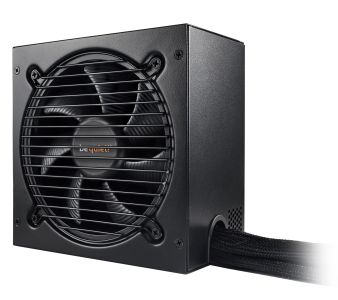

be quiet! Pure Power 11 500W power supply unit ATX Black

Updated at: 2022-01-23 01:04:37

Power Factor Correction (PFC) type	Active
Max output current (+12V2)	20 A
Max output current (+3.3V)	24 A
Combined power (+5Vsb)	15 W
Max output current (-12V)	0.3 A
Combined power (+5V)	120 W
Hold time	23 ms
Max output current (+5V)	15 A
Combined power (-12V)	3.6 W
Combined power (+3.3V)	120 W
Combined power (+12V)	480 W
Max output current (+12V1)	28 A
Max output current (+5Vsb)	3 A
Peak power	550 W
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Input current	8 A
Total power	500 W
Power protection features	Under voltage, Over current, Short circuit, Over voltage, Overheating, Over power
Efficiency	92%
Power factor	0.99

Noise level (silent mode, <30%)	9.3 dB
Noise level (quiet mode, 50%)	9.6 dB
Noise level (full-load mode, 100%)	21.6 dB
RoHS compliance	Y
Energy Star certified	Y
Purpose	PC
Power supply unit (PSU) form factor	ATX
ATX version	2.4
80 PLUS certification	80 PLUS Gold

CPU power cable length	60 cm
SATA power cable length	500 mm, 650, 800
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of PATA power connectors	3
PCI Express power cable length	50 cm
CPU power connector (4+4 pin)	Y
Number of SATA power connectors	6
Floppy disk drive connector	Y
PCI Express power connectors (6+2 pin)	2

Master (outer) case height	24.1 cm
Master (outer) case length	51.4 cm
Master (outer) case width	32.6 cm
Master (outer) case gross weight	15.2 kg
Products per master (outer) case	6 pc(s)
