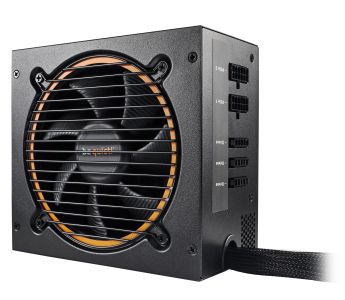

be quiet! Pure Power 11 400W CM power supply unit ATX Black

Updated at: 2022-01-23 01:04:46

Max output current (+5V)	15 A
Max output current (+5Vsb)	3 A
Max output current (-12V)	0.3 A
Max output current (+3.3V)	24 A
Combined power (+5Vsb)	15 W
Hold time	28 ms
Peak power	450 W
AC input frequency	50 - 60 Hz
Power protection features	Under voltage, Short circuit, Over voltage, Over power, Overheating, Over current
AC input voltage	100 - 240 V
Combined power (+12V)	384 W
Input current	6 A
Efficiency	92%
Power factor	0.99
Power Factor Correction (PFC) type	Active
Max output current (+12V1)	24 A
Total power	400 W
Max output current (+12V2)	20 A
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+3.3V)	120 W

Noise level (quiet mode, 50%)	9.9 dB
Noise level (silent mode, <30%)	9.4 dB
Noise level (full-load mode, 100%)	13.9 dB
RoHS compliance	Y
ATX version	2.4
Purpose	PC
Energy Star certified	Y
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold

Number of PATA power connectors	2
PCI Express power cable length	50 cm
CPU power cable length	60 cm
CPU power connector (4+4 pin)	Y
Number of SATA power connectors	5
SATA power cable length	450, 600 mm, 750 mm
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	45 cm
PCI Express power connectors (6+2 pin)	2
Floppy disk drive connector	Y

Master (outer) case height	24.1 cm
Master (outer) case width	32.6 cm
Master (outer) case gross weight	14.5 kg
Master (outer) case length	51.4 cm
Products per master (outer) case	6 pc(s)
