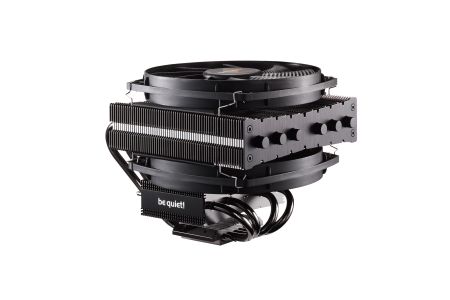

BE QUIET CPU cooler! DAR ROCK TF BK020 (AM2, AM2 +, AM3, AM3 +, AM4, FM1, FM2, FM2 +, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1366, LGA 2011, LGA 2011-3, LGA 2066, LGA 775)

Inadequate temperature can reduce the life of our equipment, so it is worth choosing good cooling so that the components generate as little noise as possible and the lowest possible temperature. It is very important to use high-quality fans, which will ensure the best possible circulation, which will blow warm air in the front and the heated air will be discharged from the rear. Thanks to this application, all components will not heat up.

Technical details

Environmental (sustainable development) certificate

RoHS

Construction

Materials

Nickel, Aluminum, Copper

The color of the product

Black, Silver

Ballast material

Aluminum

Number of fans

2 fan

Number of ribs

126

Number of heat pipes

6

Power

Rated current

0.11 A.

Thermal Power Design (TDP)

220 W.

Tension

12 V

Power consumption

1.32 watts

Weight and dimensions

The diameter of the heat pipes

6 mm

Fan dimensions (W x D x H)

135 x 135 x 22 mm

Product height

130.8 mm

Product weight

810 g

Product width

140 mm

Packaging depth

210 mm

Cable length

0.22 m

Product depth

162.6 mm

Package width

190 mm

Package height

230 mm

Weight with packaging

1.5 kg

Performance

Pulse width modulation (PWM) support

Yes

Suitable for

Processor

Maximum air flow

67.8 ft³ / min

Fan canopy diameter

13.5 cm

Rotation speed (max)

1400 RPM

Air flow

113.8 m³ / h

Maximum air pressure

2.1 mmH2O

Noise level (high speed)

26.7 dB

Noise level (low speed)

11.9 dB

MTBF (Mean Time Between Failures)

300,000 h

Processor sockets supported

Socket AM2, Socket AM3 +, LGA 1366 (Socket B), LGA 1151 (Socket H4), LGA 775 (Socket T), LGA 1150 (Socket H3), Socket FM2, LGA 2011-v3 (Socket R), Socket AM3, LGA 2066, Socket AM2 +, Socket FM1, Socket AM4, LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket FM2 +, LGA 1200 (Socket H5)

Model

Cooler / fan

Bearing type

Fluid Dynamic Bearing (FDB)

Contents of the package

A kind of package

Box

Other functions

Heatsink dimensions (W x D x H)

140 x 162.6 x 108.8 mm

Logistics data

Products in the main (outer) box

12 pcs.

Main (outer) box length

59.5 cm
