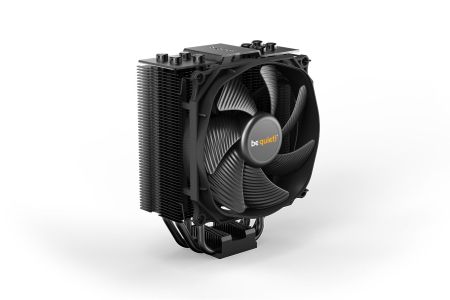

Computer fan BE QUIET! DARK ROCK SLIM BK024 (AM2 +, AM3 +, AM4, FM1, FM2 +, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1366, LGA 2011-3, LGA 2066)

Inadequate temperature can reduce the life of our equipment, so it is worth choosing good cooling so that the components generate as little noise as possible and the lowest possible temperature. It is very important to use high-quality fans, which will ensure the best possible circulation, which will blow warm air in the front and the heated air will be discharged from the rear. Thanks to this application, all components will not heat up.

Technical details

Environmental (sustainable development) certificate

RoHS

Construction

The color of the product

Black

Number of heat pipes

4

Base plate material

copper

Fan connector

4-pin

Number of ribs

51

Ballast material

Aluminum

Number of fans

1 fan

Power

Rated voltage

12 V

Rated current

0.08 A.

Thermal Power Design (TDP)

180 W.

Power consumption

0.96W

Weight and dimensions

Packaging depth

115 mm

Cable length

0.22 m

Package width

190 mm

Product weight

620 g

Weight with packaging

993 g

The diameter of the heat pipes

6 mm

Fan dimensions (W x D x H)

120 x 120 x 23 mm

Product height

159.4 mm

Product width

127 mm

Product depth

72 mm

Package height

190 mm

Performance

Processor sockets supported

Socket AM2, LGA 1151 (Socket H4), LGA 1150 (Socket H3), LGA 2011 (Socket R), Socket AM2 +, Socket FM2 +, LGA 1200 (Socket H5), Socket AM3 +, LGA 1155 (Socket H2), LGA 1156 ( Socket H), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), Socket AM3, LGA 2066, Socket AM4, Socket FM2, Socket FM1

Model

Cooler / fan

Noise level (high speed)

23.6 dB

Noise level (low speed)

11 dB

Pulse width modulation (PWM) support

Yes

Rotation speed (max)

1500 RPM

Fan canopy diameter

12 cm

Suitable for

Processor

Bearing type

Fluid Dynamic Bearing (FDB)

Contents of the package

User's Guide

Yes

Assembly kit

Yes

Other functions

Heatsink dimensions (W x D x H)

127 x 47.4 x 159.4 mm

Thermally conductive paste

Yes

Logistics data

Main (outer) box length

47.5 cm

Collecting box width (outer)

40 cm

Main (Outer) Case Gross Weight

17.2 kg

Reference box height (outer)

41 cm

Products in the main (outer) box

16 pcs.
